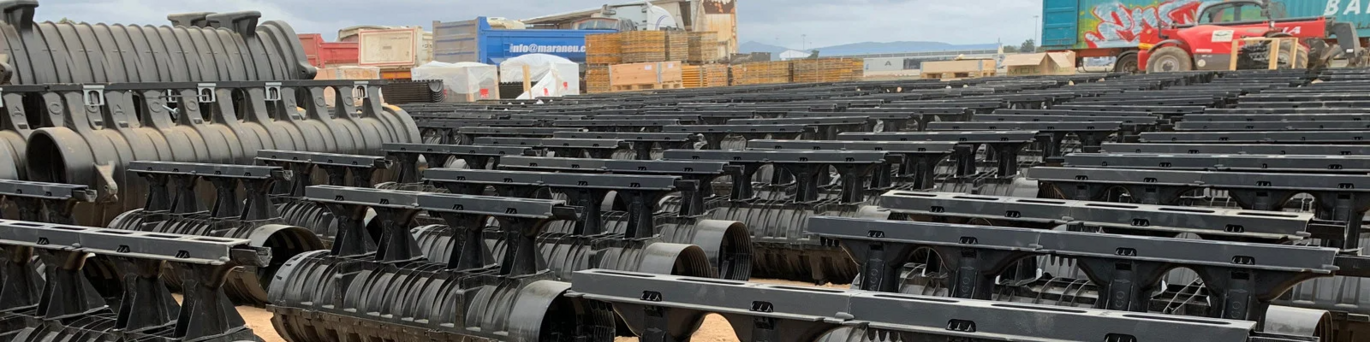

Casestudies-mallorca

ACO DRAIN® Qmax Neo

High-capacity slot drainage made of plastic with integrated seal and option for water retention or attenuation

ACO DRAIN® Qmax Neo is a part of the existing Qmax family. This “Efficient Option” differs in terms of material, manufacturing and transport process.

Qmax Family product advantages

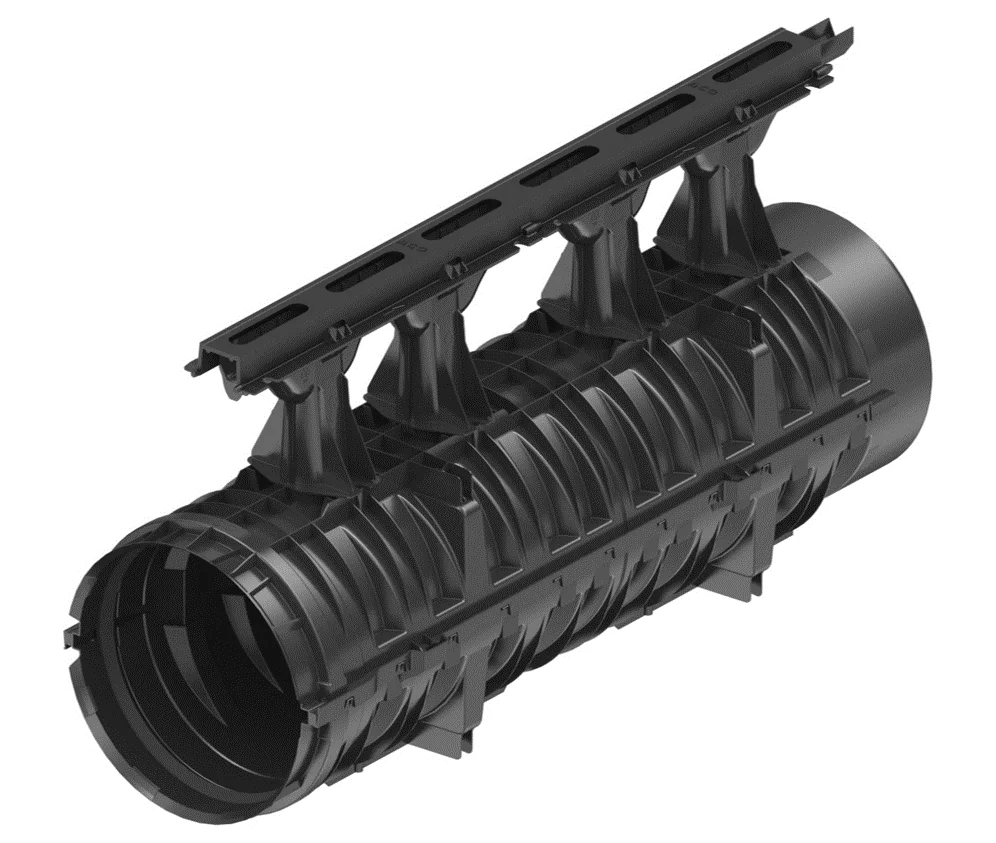

157009 ACO Qmax Neo 300 Channel Q-Flow 0 5m Assembled Without Leg

Application variety
  • All surface finishes possible
  • Traffic loads from A 15 to F 900 certified
  • Large choice of materials for edge rail

Design
  • Professional surface appearance due to discreet and narrow edge rail
  • Uniform and straight surface appearance even with different nominal widths underground
  • Drainage for the surface area and simultaneous retention with large storage volumes without additional sewer work

Operating State
  • Sealed channel run

Installation
  • High lay rates and performances without heavy lifting devices

ACO Qmax is the combination of drainage and retention.

There are no limits related to the application field – everything is possible with ACO Qmax, from utilising it as a slotted channel in pedestrian areas to the drainage of large
surface areas with heavy traffic.

The plastic channels are easy and quick to assemble due to their low weight.

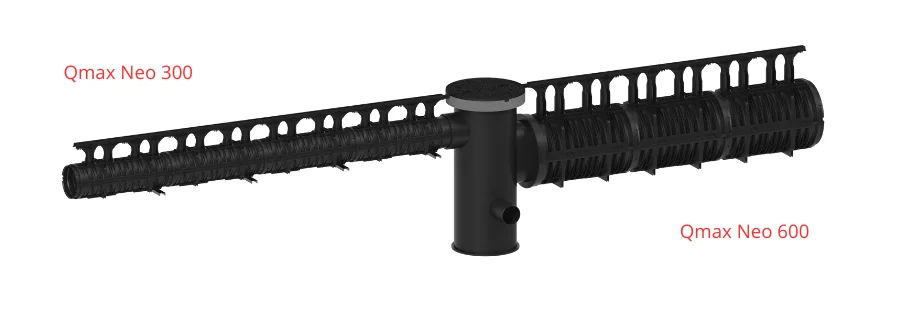

Qmax Neo 300 600

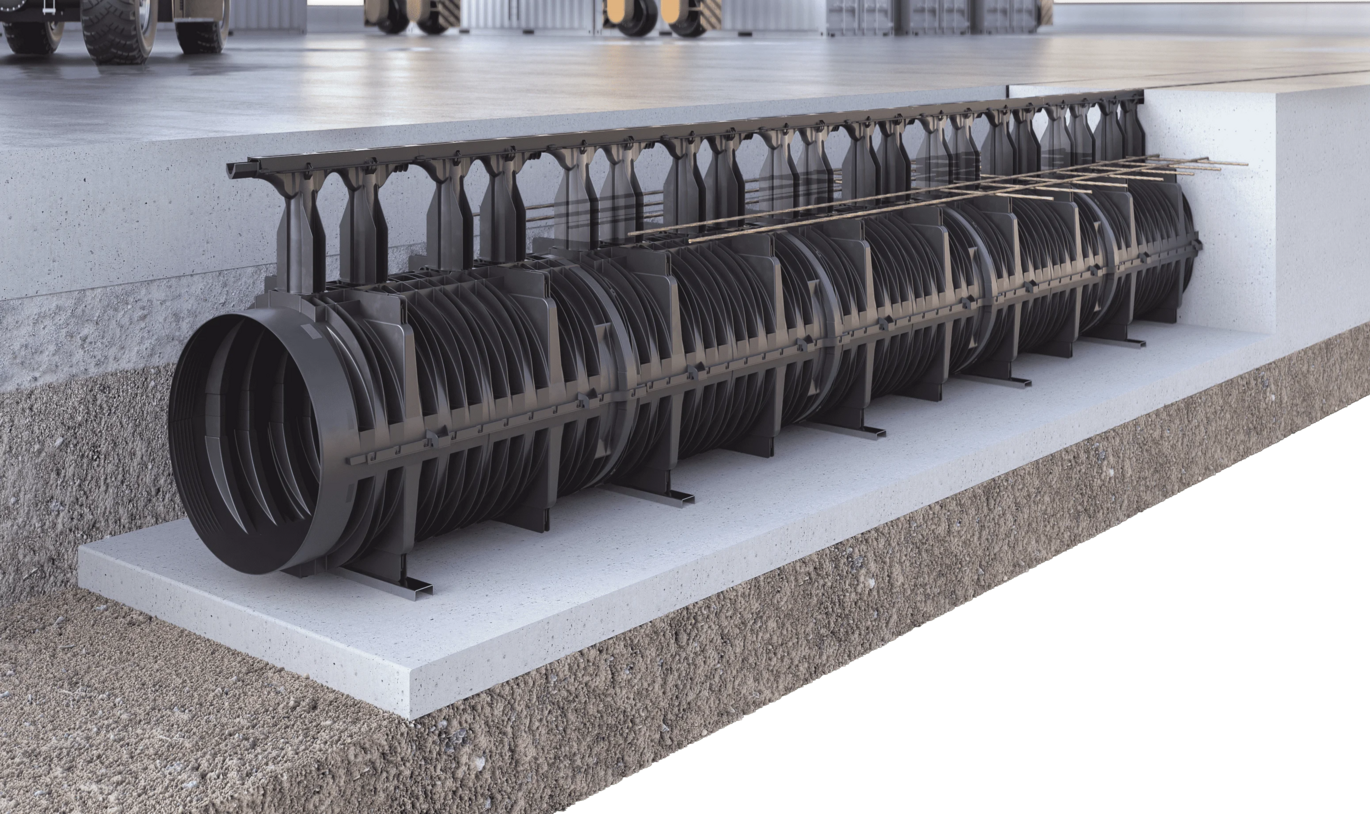

Qmax-neo-600 Installation Anwendungsbereich Gross Optimized

Transportation benefits

Qmax Neo is available in two transport variants. Assembled (in case of Qmax Neo 300 only) and Modular (flat pack).

Modular (flat pack)

The flat pack version helps to achieve the highest efficiency in terms of transport.

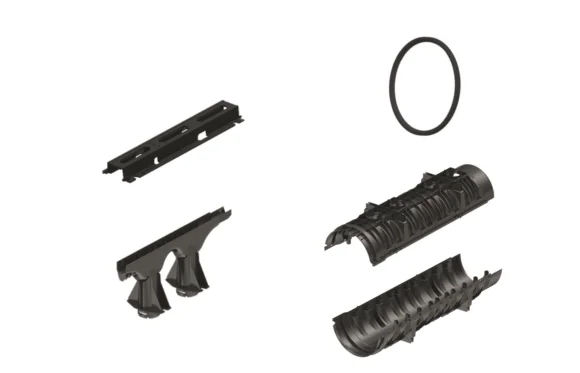

Flat Pack Neo

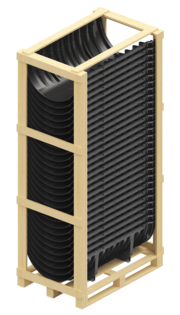

Qmax-neo-pu Optimized
