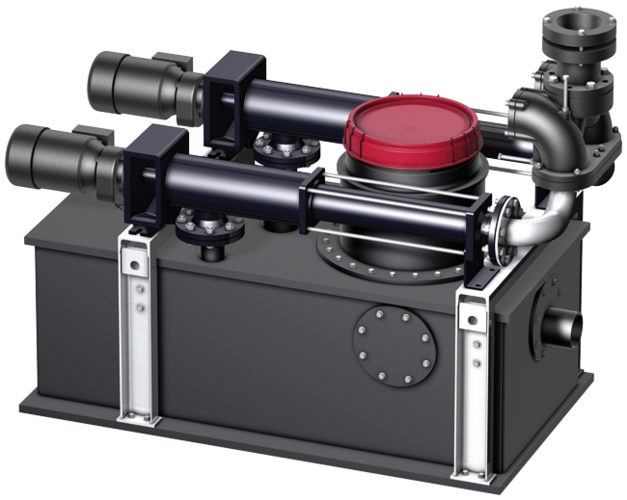

Upstream tank plant

Product benefits

Low turbulence wastewater supply to grease separator plant thanks to displacement pumps
Compact construction
Low energy consumption
Secure level regulation thanks to use of air bubble injection

Areas of application
- Operation over sizeable distances between water point of incidence and grease separator plant
- Low inlet connection for grease separator
Polyethylene container
- 1 x maintenance opening for simple maintenance (350 mm width clearance) with odour proof screw-on cover
- Fixing kit for buoyancy-proof anchorage
- Strainer insert to match inflow
- 1 x horizontal inflow sockets
  - DN 100, Ø110 (types 2 + 4)
  - DN 150, Ø160 (types 7 + 10)
  - DN 200, Ø200 (types 15 + 20)
- 2x horizontal blank flange
  - DN 100 (types 2 + 4)
  - DN 150 (types 7 + 10)
- 1x vertical socket DN 100 (ventilation)
2 x eccentric screw pumps
- Gear motor 400 V, 50 Hz
- IP 55 protection
- Integrated thermal monitoring
- Integrated flow volume monitoring
- 10 m mains cable
Extension pressure line
- Special encased ball backflow stop, presented as a Y-branch pipe (with integrated venting and fixing screws)
- Special mounting adaptor for elastic connection of the DN 100 pressure pipe (pipe external diameter: Diameter 108 – 114.3 mm/optional DN 80)
Level switching
- Pneumatic level switching with 10 m control line
- With air bubble injection via a mini compressor
Controls
- IP 54 protection
- 1.5 m cable and EEC plug (32 A)
- Mains-free group fault and operational messages
