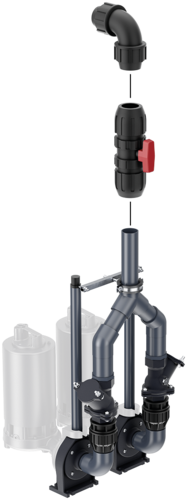

Pumping set Powerlift-P mono/duo

Product benefits

  • Selected material combination for longer service life
  • Preassembled piping
  • Overall height and features adjustable using the modular principle
  • Underwater coupling system with sliding tube

Suitable for

  • Grey and black water
  • Use downstream of grease separators

Product information

  • Field of application
    • Downstream of separators
    • Detached and multi-dwelling houses
    • Surface water drainage, e.g. ramps, inner courtyards, etc.
    • Trade and industry parks
  • Automatic underwater coupling for retaining ACO submersible pumps with coupling element
  • Easier hanging and pulling out of the pumps due to sliding tube system
  • Use of different level sensors due to universal level switching bracket (see accessories)
  • 4 m chain enclosed with the pump
  • Pump set DN 50
    • Pressure line and ball valve made of PVC-U
    • Backflow valve made of cast iron
    • Pressure line connection DN 50 (OD=63 mm) with compression fitting (DN 70 or DN 80 as accessory)
    • Optional horizontal or vertical pressure outlet (included in the scope of supply)
    • Minimum installation space: 800 x 800 mm Ø1000
  • Pump set DN 100
    • Backflow valve, Y-branch pipe, gate valve and transition elements made of cast iron
    • Special adapter DN 100 for connection of the pressure line with 108 – 114.3 mm pipe outside diameter (optional 88 – 90 mm)
    • Vertical pressure outlet
    • Minimum installation space: angular - 1000x1000mm/ round - see PDF "Installation situations in the shaft" in the download area
