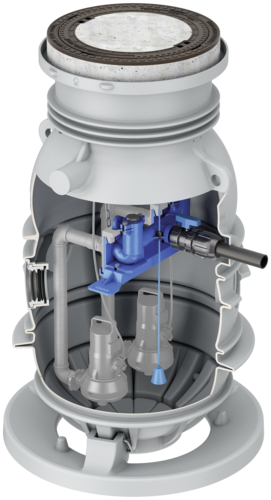

Pumping stations Muli-Max mono/duo – load class: B 125

Product benefits

  • Total installation depth up to 3000 mm
  • Inlet depth max. 2225 mm
  • Pneumatic level switch for high operational safety
  • Buoyancy-proof against ground water level up to 0.675 m from ground level
    • Optional: foot for buoyancy safety completely up to ground level OK
  • Installation without on-site concrete work
  • Accessible by cars

Product information

  • Application areas
    • Single and multiple family houses
    • Office buildings
    • Industrial buildings
    • Pressure Drainage
  • Single or double pump station for below ground installation from polyethylene
  • Tested according to EN 12050
  • With automatic above water coupling
    • Suitable for submersible pumps from ACO
  • Pressure connection from PE-HD DN 50 (OD 63 mm), with ball valve and compression fitting 63 x 63 mm OD
  • Installation height: 1,951mm
  • Connecting height (from top of tank to center of pressure connection): 901 mm
  • Two inlets OD 160 mm, connecting height top of cover until center of pipe: 1,176 mm, one sealing ring in scope of delivery
  • Two inlets OD 110 mm, connecting h height top of cover until center of pipe height: 1,176 mm
  • Two connections OD 110 mm for cable pipe and ventilation, connecting height top of cover until center of pipe height: 521 mm
  • Connection with pipe sleeve R ½” for rinsing connection / vacuum interruption (accessories)
  • Manhole cover (optionally locked)
    • Load class: B125
    • Opening: 600 mm according to EN 124
    • Without ventilation
    • With lifting tool
  • Suitable submerged pumps mono/duo
