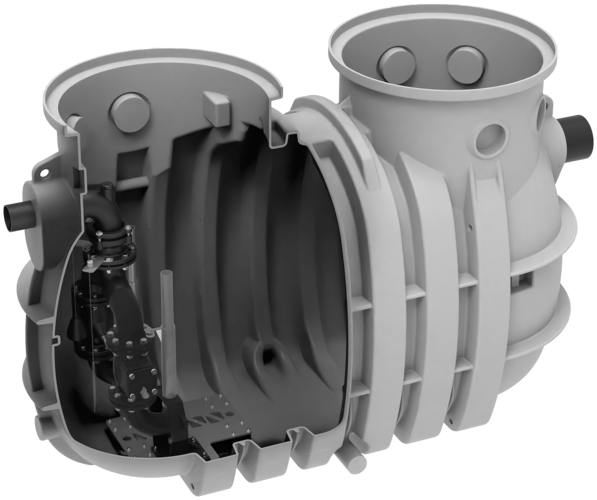

Pumping stations Powerlift-PF-H Flex
Product benefits
- Tested in accordance with DIN EN 12050-1
- Suitable for grey and black water (after pumps)
- Automatic underwater coupling with sliding pipe
- Large usable volume up to max.: 1790 litres
- Proven stability of the container: 50 years
- Suitable for
- Grey and black water
- Use behind grease separators
Product information
- Scope
- Commercial and industrial establishments
- Surface water
- Behind separators up to NS20
- Polyethylene tanks
- Below ground installation
- Designed for assembly of top-mounted systems
- 2 x maintenance openings ∅ 840 mm for consumption of a necessary cover system (accessories) with load classes B 125 or D 400
- Inlet invert ZT: 1160-1920 mm after extension system (distance from top edge of ground to lower edge of connection port/pipe bottom)
- Maximum installation depth ET up to 3 m (distance from the top edge of the ground to the lower edge of the container)
- Buoyancy safety of the container: Buoyancy safety up to 1.65 m above the lower edge of the container with extension system and load distribution plate (B 125 and D 400)
- Connections
- Horizontal pipe socket DN 200/ OD 200 mm for inlet line on site
- Horizontal pipe socket DN 100/ OD110 mm for discharge line on site
- 8 x horizontal pipe sockets (closed) DN 100/OD 110 mm for vent stack on site
- Discharge line
- Cast iron backflow preventer, Y-branch pipe and transition elements
- Automatic underwater coupling for the consumption of ACO submerged pumps with coupling piece
- Level switching
- Optional pressure bell or pressure transducer (both accessories)
- Approved pumping temperature up to 40 °C (max. 65 °C for short periods)
- Pumps, control, covers, level measuring are not included in the scope of supply and must be ordered separately (see accessories)
