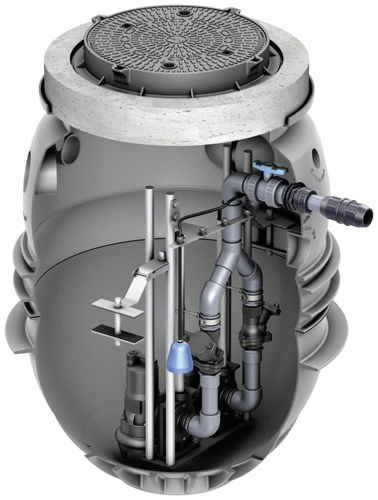

Powerlift-P Duo – Load Class B 125

Pumping stations Powerlift-P duo – load class: B 125

Product benefits

  • Selected material combinations for longer service life
  • Vertically installed ball retaining valve for reliable closing
  • Overall installation depth up to 3 m
  • Large usable volume – for surface drainage
  • Largely deposit free collection chamber with spherical bottom
  • Car trafficable

Product information

  • Area of use
    • Downstream of separators
    • Detached and multi-dwelling houses
    • Surface drainage, e.g.:
    • Ramps, inner courtyards, etc.
    • Trade and industrial buildings
  • Double pumping station for collecting and automatic lifting of faecal and non-faecal wastewater above the backflow level
  • For installation below ground
  • Housing made out of polyethylene
    • Nominal diameter 1320 mm
    • Clear width 1100 mm
  • Cross beams made of stainless steel material grade 316Ti
  • Automatic underwater coupling for retaining ACO submersible pumps with coupling element
  • Piping made of PVC-U
    • 1x ball valve G 2 made of PVC-U
    • 2x ball retaining valve G 2 made of cast iron EN-GJL
    • Flushing pipe connection option
  • Pressure line connection (outside) with compression fitting DN 50 (adapter DN 70, DN 80 as accessory)
    • DN 50 for pipe outside Ø 63 mm
    • DN 70 for pipe outside Ø 75 mm
    • Dimension from bottom of tank to middle of pressure pipe 1295 mm, positioned at 3 o'clock
  • 1x connection socket DN 150 with sealing element for inlet pipe, connection according to DIN EN 877, dimension from upper edge of the manhole cover to the centre of the inlet 560mm.
  • 2x connection socket DN 100 with sealing element for cable conduit/ventilation, connection to EN 877, dimension from upper edge of the manhole cover to the centre of the socket 560mm.
  • Use of different level sensors due to universal level switching bracket
  • Control to control the level of liquids
  • Adapter plate Ø 1000/625, H = 150 mm
  • Shaft cover nominal size 600 - class B 125, according to DIN EN 124, odourproof bolted, H=125 mm
  • Due to a height-adjustable top section (top section H = 1740 mm) it can be installed up to a total installation depth of 3.00 mm
  • Installation depth T1 = min. 630 mm
  • Buoyancy proof where groundwater levels are up to 0.5 m below the ground level
