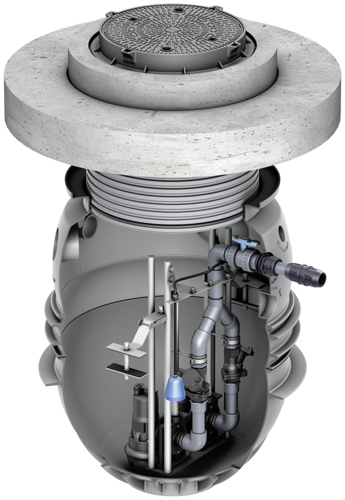

Pumping stations Powerlift-P duo – load class: D 400 with top section
Product benefits
- Selected material combinations for longer service life
- Vertically installed ball retaining valve for reliable closing
- Overall installation depth up to 3 m
- Large usable volume – for surface drainage
- Largely deposit free collection chamber with spherical bottom
- Truck trafficable
Product information
- Area of use
- Downstream of separators
- Detached and multi-dwelling houses
- Surface drainage, e.g.:
- Ramps, inner courtyards, etc.
- Trade and industrial buildings
- Double pumping station for collecting and automatic lifting of faecal and non-faecal wastewater above the backflow level
- For installation below ground
- Housing made out of polyethylene
- Nominal diameter 1320 mm
- Clear width 1100 mm
- Cross beams made of stainless steel material grade 316Ti
- Automatic underwater coupling for retaining ACO submersible pumps with coupling element
- Piping made of PVC-U
- 1x ball valve G 2 made of PVC-U
- 2x ball retaining valve G 2 made of cast iron EN-GJL
- Flushing pipe connection option
- Pressure line connection (outside) with compression fitting DN 50 (adapter DN 70, DN 80 as accessory)
- DN 50 for pipe outside Ø 63 mm
- DN 70 for pipe outside Ø 75 mm
- Dimension from bottom of tank to middle of pressure pipe 1295 mm, positioned at 3 o'clock
- 1x connection socket DN 150 with sealing element for inlet pipe, connection according to EN 877, dimension from upper edge of the manhole cover to the centre of the inlet 955-1705mm
- 2x connection socket DN 100 with sealing element for cable conduit/ventilation, connection to EN 877, dimension from upper edge of the manhole cover to the centre of the socket 935-1705mm
- Use of different level sensors due to universal level switching bracket
- Control to control the level of liquids
- Full top section
- Top section H = 1600 mm
- 2x sealing ring Ø 780 mm, 20 thick
- 1x retaining ring Ø 810 mm, 30 thick
- Load distribution plate Ø1,550/850, H = 200 mm
- Adapter plate Ø 1000/625, H = 150 mm
- Shaft cover nominal size 600 - class D 400, according to EN 124, odourproof bolted, H=125 mm
- Due to a height-adjustable top section it can be installed up to a total installation depth of 3.00 mm
- Installation depth T3 = min. 955 mm up to max. 1795 mm
- Buoyancy-proof at groundwater levels up to the terrain surface
