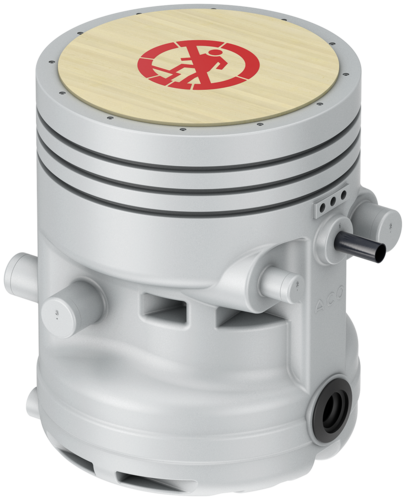

Muli-Flex – underground installation
Product benefits
- Tested according to EN 12050-1
- Depending on the raising, tube, it can be used for waste water with or without faeces
- Automatic pump coupling for tool-free assembly and disassembly
- Total tank volume: 380 liters
- Wall collar against pressing groundwater (option)
Product information
- Application:
- Multiple family houses
- Office buildings
- Industrial buildings
- Washrooms
- Parking garages
- Technical rooms
- With one or two pumps
- For installation in the base plate
- Tank from polyethylene
- Large inspection opening for easy maintanance: ∅ 480 mm
- Tank dimensions (DxH): ∅800 x 1000 mm

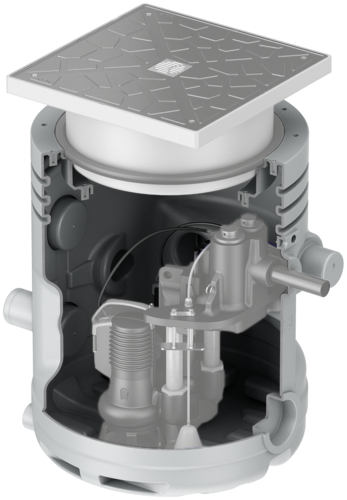

- Pump traverse with double special ball non-return valve, tool-free disassembly/assembly of the pump via automatic surface-water coupling
- Connection inlet piping (minimum operating volume: 30 liters, maximum operation volume: 160 liters, inlet heights measured from the upper edge of the floor to the lower edge of the inlet pipe):
- 1 x Inlet DN 100 Forsheda, inlet height 875 mm, operating volume = 30 l
- 1 x Inlet DN 100 Forsheda, inlet height 805 mm, operating volume = 50 l
- 2 x Inlet DN 100 spigot, inlet height 655 mm, operating volume = 100 l
- 1 x Inlet DN 150 spigot, inlet height 630 mm, operating volume = 105 l
- 1 x Inlet DN 100 spigot, inlet height 605 mm, operating volume = 115 l
- 1 x Inlet DN 100 Forsheda, inlet height 455 mm, operating volume = 170 l
- Pressure pipe connection:
- Pressure pipe outlet PE-HD: spigot DN 50 (∅50 mm)
- Compression fittting with adapter 1½" inner thread included
- Ventilation connection:
- Spigot DN 70 (OD 75 mm) suitable for fitting plastic or cast iron pipes
- Connecting height: 437,5 mm (measured from the upper edge of the floor to the lower edge of the inlet pipe)
- Additional connections:
- Cable duct DN 100 (OD 110 mm) spigot, 455 mm (measured from the upper edge of the floor to the lower edge of the inlet pipe)

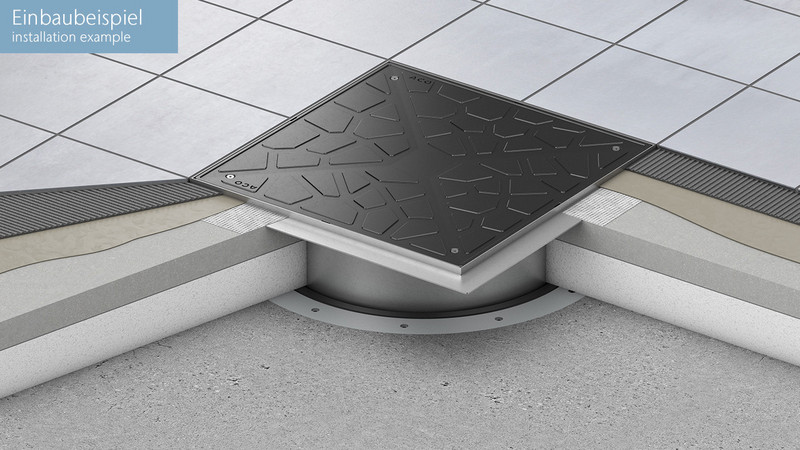

- Total installation height with raising tube: 1070 – 1400 mm
