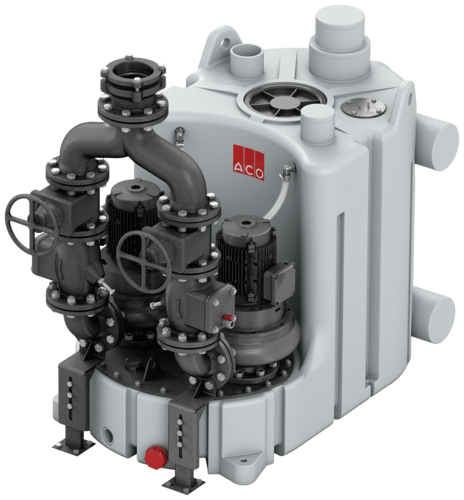

Waste water lifting plant Muli Pro-DDP
Product benefits
- Large usable tank volume
- Various inlet heights
- High level of operational safety thanks to pilot tube and air bubble injection
- Suitable for wastewater containing grease
- Can be extended in parallel lengths
- Energy-saving channel impeller
- Designed to fit through narrow doorways: 780 mm
Product information
- Areas of application
- Apartment buildings
- Small business premises with a high level of wastewater
- Downstream of grease separators up to NS 22,5
- Where there are long discharge pressure lines with a large difference in height
- Polyethylene tank
- With drain plug
- With connection for hand membrane pump 1½"
- With fixing kit for operationally secure attachment
- With 4 horizontal intake nozzles DN 150
- With 1 vertical intake nozzle DN 150/200
- With 1 service opening, clear width: 250 mm
- With ventilation sockets DN 100 to connect to plastic tube
- Connection pressure line
- With 2 special backflow stops DN 80 (DN 100 on Muli Pro-PE K‑75 duo) with venting device
- With Y-branch
- With special mounting adapter DN 100 for connection of 108 – 114.3 mm pipe external diameter pressure line
- 2 pump motors
- Three phase motor 400 V, 50 Hz
- IP 68 protection
- With axle and rotating mechanical seal
- With channel impeller
- Pneumatic level switching with pilot tube and pneumatic control line
- Mini compressor for air bubble injection
- Switch and alarm device
- IP 54 protection
- With 1.5 m cable and EEC plug
- With volt free centralised fault and operational warnings
- Incl. 10 m cable between lift and switch box.
