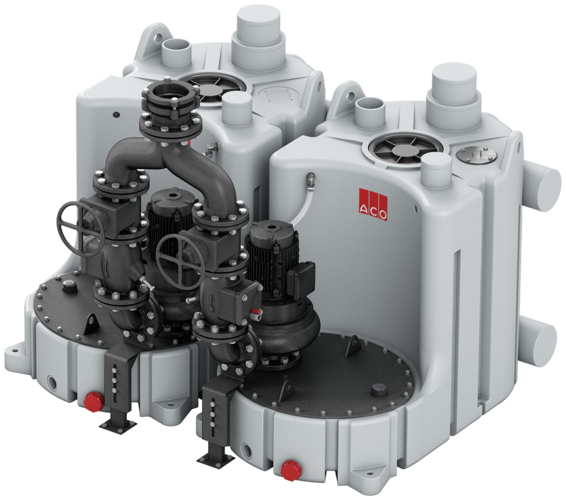

Muli Pro-DDP parallel

Product benefits

Areas of application
- Commercial or industrial units with high level of wastewater
- Where there are long discharge pressure lines with a large difference in height
- Downstream of grease separators up to NS 22.5
Polyethylene tank
With drain plug
With connection for hand membrane pump 1½"
With fixing kit for operationally secure attachment
With 6 horizontal intake nozzles DN 150
With 2 vertical intake nozzle DN 150/200
With 2 service openings, clear width: 250 mm
With ventilation sockets DN 100 to connect to plastic tube
Connection pressure line
- With 2 special backflow stops DN 80 (DN 100 on MULI Pro-PE K‑75 duo) with venting device
- With Y-branch
- With special mounting adapter DN 100 for connection of 108 – 114.3 mm pipe external diameter pressure line
2 pump motors
- Three phase motor 400 V, 50 Hz
- IP 68 protection
- With axle and rotating mechanical seal
- With channel impeller
Pneumatic level switching with pilot tube and pneumatic control line
Mini compressor for air bubble injection
Switch and alarm device
- IP 54 protection
- With 1.5 m cable and EEC plug
- With volt free centralised fault and operational warnings
- Incl. 10 m cable between lift and switch box.
