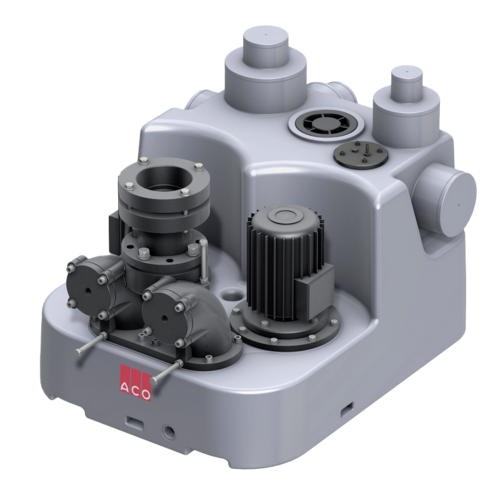

Waste water lifting plant Muli-Star DDP
Product benefits
- Low weight
- Different inlet heights
- CFD-optimised impeller
- High chemical resistance of all components
- Suitable for use downstream of grease separators
- Fast installation
- Ready to connect
- High usable volume – up to 185 l
- Adapted to door dimension: 780 mm
Product information
- Areas of us
- Downstream of grease separators up to NS 15 – in conjunction with air bubble injection
- Multiple dwelling units
- Office buildings, hotels
- Hospitals
- Tank made of polyethylene
- Bottom outlet R 1"
- Inspection opening for easy maintenance, diameter: 130 mm (DDP1), 130 mm and 250 mm (DDP2)
- Fixing set for buoyancy-proof anchorage
- Connection for manual diaphragm pump DN 50
- 2 horizontal inlet sockets, DN 150
- 2 horizontal inlet sockets, DN 150/DN 100
- 1 vertical inlet sockets DN 200/DN 150
- 1 vertical inlet sockets DN 100/DN 70 - 1 ventilation socket
- Delivery line connection
- Special backflow valve with ball in the housing
- Y-branch pipe with vent and immobilising screw
- Special adapter DN 80 for elastic connection of the delivery line with 108 – 114.3 mm outside pipe diameter (optional 88 – 93 mm)
- Connecting flange for stop valve DN 80 PN 16
- 2 pump units
- 3-phase motor: 400 V, 50 Hz
- Degree of protection IP 68
- Integrated permanent motor monitoring
- Blockage-free free flow impeller
- 10 m connection cable
- Level switching
- Pneumatic level switching with 10 m control cable
- Optionally with air bubble injection (accessory)
- Control
- Degree of protection IP 54
- 1.5 m cable and CEE plug (16A) – DDP x.1
- 1.5 m cable and CEE plug (32A) – DDP x.2
- Isolated group alarm and operation signal
- Tested to EN 12050‑1
