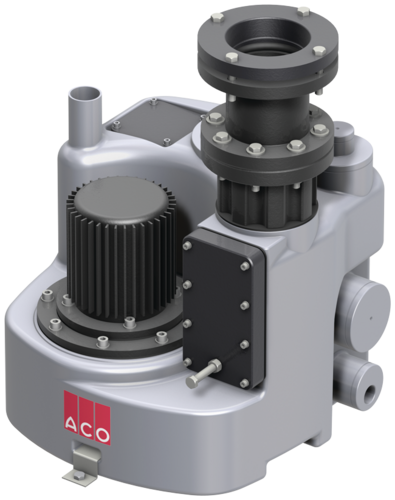

Muli-Star MDP1/MWP1

Product benefits

Area of use
- Detached houses
- Basement flat
Tank made of polyethylene
With bottom outlet Rp 1"
With inspection opening for easy maintenance, diameter: 133 mm
With fixing set for buoyancy-proof anchorage
Connection for manual diaphragm pump DN 50
With 3 inlet horizontal sockets DN 100
With 1 vertical inlet socket DN 50/DN 100
With ventilation connection DN 50 for connection to plastic pipe
Delivery line connection
- Special backflow valve with ball integrated in the housing with screw drain plug
- With integrated special adapter DN 100 for elastic connection of the delivery line of 108 – 114.3 mm outside pipe diameter
- With connecting flange for stop valve DN 80 PN 10
Pump unit
- Three phase motor (MDP1): 400 V, 50 Hz
- Single phase motor (MWP1): 230 V, 50 Hz
- Degree of protection IP 68
- With blockage-free free-flow impeller
With pneumatic level switching with 5 m control cable, adjustable to inlet height
Switching and warning device
- Degree of protection IP 54
- With 1.5 m cable and CEE plug (for MDP1) and with plug with earthing contact (MWP1)
- With isolated group alarm and operation signal
- Tested to EN 12050-1
