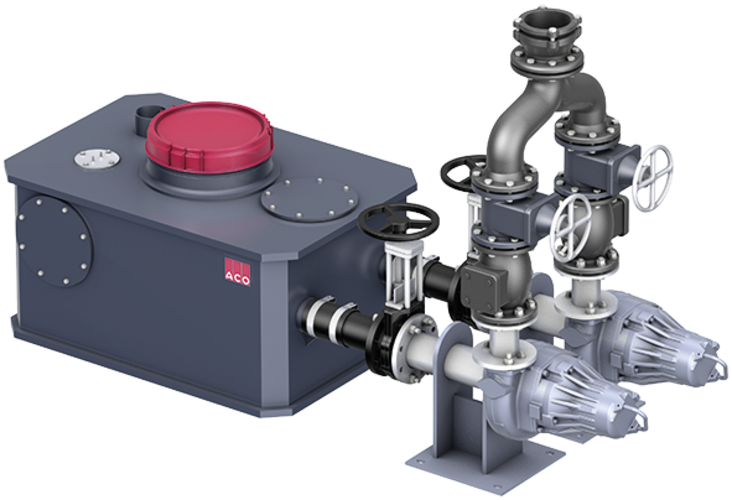

Waste water lifting plant Muli-XL DDP
Product benefits
- Container can be configured individually to customer requirements
- Good operational safety and reliability
- Pump with adaptive impeller reduces blockages in operation
- Large usable tank volume (up to 1100 litres, depending on model)
- Choice of inlet height, depending on model
Product information
- Applications:
- Commercial or industrial units with high levels of waste water
- Downstream of grease separators
- Waste water containing both long and short fibres
- Apartment buildings
- PE-HD tank
- 1 x inspection opening for easy servicing (350 mm clear width) with odour-proof plug cap
- Fixing kit for buoyancy-proof anchorage
- Inlet optionally horizontal on the side or at the end, or vertically from above, choice of DN 100, DN 150 or DN 200
- Vertical socket, choice of DN 70/100 (ventilation)
- R 1½" drain plug
- Two horizontally arranged pumps
- 400 V/50 Hz
- Protection type: IP 68
- Adaptive impeller
- Cable length: 10 m
- Extension pressure line
- Two special backflow valves with venting device
- Special DN 100 mounting adapter for connecting pressure lines from 108 – 114 mm outer pipe diameter (optionally 88 – 90 mm)
- Pneumatic level switching with pilot tube and pneumatic control line
- Mini compressor with air bubble injection available as an accessory
- Switch and alarm device
- Protection type: IP 54
- Cable and CEE plug (32 A): 1.5 m
- Isolated collective fault and operating messages
- Pneumatic control line and motor cable between lifting plant and switchbox: 10 m
