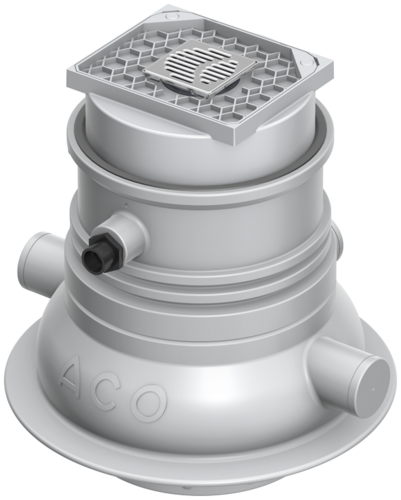

Muli-UF - complete
Product benefits
- Easy insertion
- Choice of 3 inlets
- High usable volume – 27l
- Easy assembly/disassembly of the pump due to separate pump chamber
- Fully adequate floor gully in top section
Product information
- Faecal lifting system
- Field of application
- Cellar drainage for detached houses
- For underfloor installation in frost free spaces
- Housing made out of polyethylene
- 2 different housing sizes available
- 3 horizontal inlet sockets DN 100
- 1 socket for cable gland DN 70
- 1 ventilation socket DN 50
- Top section for tileable cover
- Load class K3
- Rotatable and height-adjustable
- Integrated floor gully with water trap height = 50 mm
- Inspection opening = 330 x 250 mm
- Discharge line connection
- Pressure line connection according to EN ISO 15493 made of PVC-U; 50 40-R 1¼"
- Integrated non-return flap
- Cutter pump
- Degree of protection IP 67
- Installed in separate pump chamber
- With mechanical seal
- 10 m connecting cable
- Level switching
- Pneumatic level switching with 10 m control cable
- Control
- Degree of protection IP 54
- 1.5 m cable and plug with earthing contact
- Isolated group alarm and operating signal
