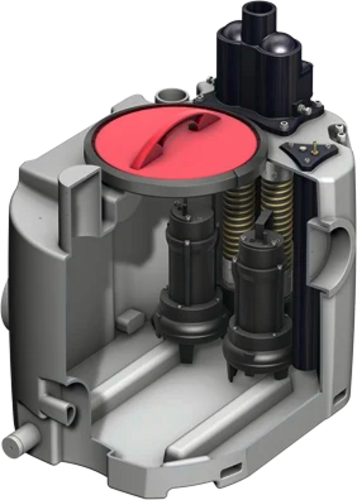

Waste water lifting plant Muli-Mini duo
Product benefits
- Ready to connect
- Different inlet heights can be selected
- High usable volume – up to 140 l
- Suitable for installation downstream of grease separators up to NS 4
- Pump can be dismantled without tools
- Designed to fit through narrow doorways 700 mm
- Low weight
Product information
- Areas of application
- Downstream of grease separators up to NS 4
- Laundries
- Rows of showers
- Basement areas
- Polyethylene tank
- Scour outlet R 1"
- Service opening for simple maintenance, diameter: 340 mm
- Fixing kit for attachment against floating
- Connector for hand membrane pump DN 50
- 4 horizontal intake sockets DN 100
- 1 vertical inlet nozzle DN 100
- Optionally 1 vertical inlet nozzle DN 50 (accessory)
- 1 ventilation socket DN 70
- Connection pressure line
- Special backflow stop with ball in housing
- With venting and fixing screw
- Connection: Rp 2"
- 2 grey water underwater pumps
- Version D: With 3-phase submerged motor pump 400 V, 50 Hz
- Version W: With A.C. submerged motor pump 230 V, 50 Hz:
- IP 68 protection / Operation S1 (continuous operation) when pumps are completely submerged
- With blockage-free free flow impeller
- 10 m mains cable
- Level switching
- Pneumatic level switching with 10 m control lines
- Optionally with air bubble injection for increased operational security when installing downstream of grease separators (accessory)
- Controls
- IP 54 protection
- 1.5 m cable and EEC plug (16 A) – version D
- 1.5 m cable and safety plug (16 A) – version W
- Potential-free collective fault message and operating signal
- Tested to DIN EN 12050-2
