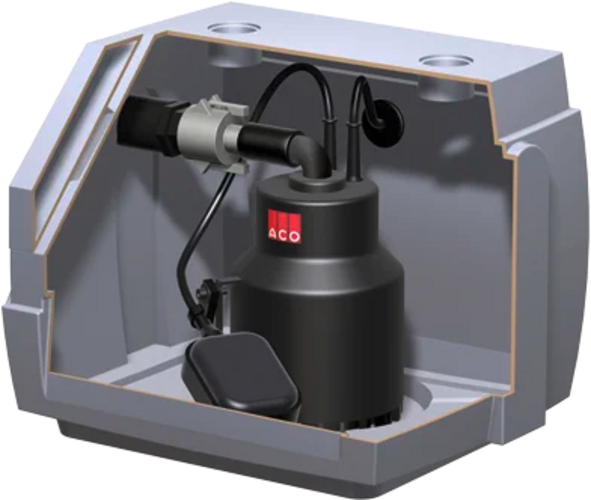

Waste water lifting plant Sinkamat-K
Product benefits
- Quick-lock coupling for tool-free fitting/removal of the pump
- Small dimensions thanks to innovative shape
- Maintenance without dismantling the inlet siphon
Product information
- Applications:
- For above-ground installation in frost-free rooms below the backflow level such as e.g. cellars, hobby rooms and laundries.
- For domestic grey water without faecal content from showers, washbasins etc.
- Tested to DIN EN 12050-2
- With polyethylene tank
- With multiple connection options up to DN 50
- With forward-facing maintenance opening
- Tank ventilation via active charcoal filter
- Grey water submersible pump with robust alternating current motor
- Motor housing and shaft made of stainless steel
- Pump housing and impeller made of plastic
- Pump housing seal to motor using rotating mechanical seal
- With 10 m cable and EEC plug
- With ball float switch
- With integrated non-return flap 1¼"
- Pressure line connection as per EN ISO 15493
- PVC-U, 50‑40-R 1¼"
