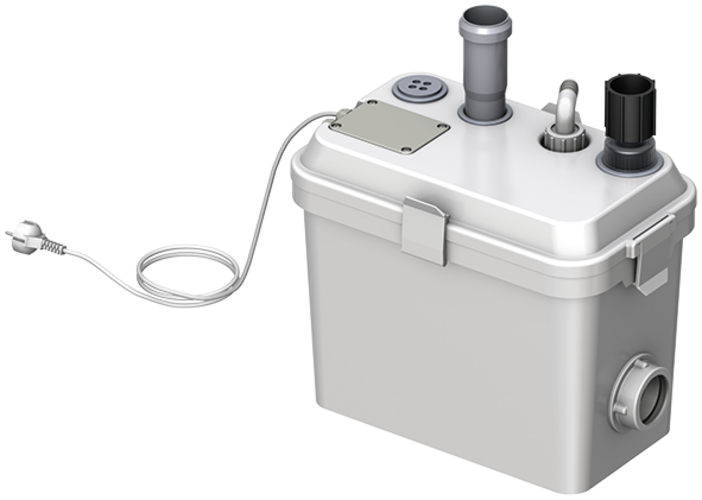

Waste water lifting plant Sinkamat-K1/K2/KD1/KD2
Product benefits
- Tool-free servicing
- Compact
- Ready to connect
- Acoustic alarm if water reaches impermissibly high level
Product information
- Applications:
- For above-floor installation in frostproof premises below the backflow level (basements, hobby rooms and laundry rooms)
- For domestic grey water, without faecal content, from showers or washbasins
- *Downstream of water softening plants and for condensate from heating systems (max. salt content: 15%) – only types KD1 & KD2
- Polypropylene container
- With several horizontal and vertical connection options up to DN 50
- Container ventilation via active carbon filter
- Grey water submersible pump with robust single phase motor
- Stainless steel motor housing and shaft
- Plastic pump housing and impeller
- Mechanical seal between pump housing and motor
- 1,5 m connecting cable and Safety plug
- Float switch (reed contact)
- Vertical 1¼" pressure discharge with integrated non-return flap
- Switching device with isolated contact, integrated in container lid
- Acoustic alarm if water reaches impermissibly high level
- Degree of protection: IP67
