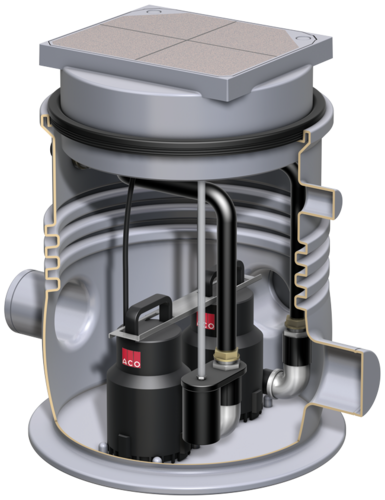

Waste water lifting plant Sinkamat-K duo
Product benefits
- Quick-release coupling for toolless installation/dismantling of the pump
- Optional sealing in waterproof concrete
- Several connection options available
- Optional cover for selectable surface and odour trap
Product information
- Field of application
- For underfloor installation in frost proof rooms below the flood level, e.g. in basement, hobby and laundry rooms
- For domestic non-faecal wastewater, e.g. from showers, washbasins, etc.
- Housing made out of polyethylene
- With 3 inlet sockets DN 100
- Delivery pipe junction with integrated backflow flaps
- Connection DN 40
- Spigot ∅ 50 mm
- Top section
- With telescopic height-adjustability: 30 – 70 mm
- Frame size: 360 x 300 mm
- 2 pump units
- Motor housing and shaft made of stainless steel
- Pump housing and impeller plastic
- Mechanical seal between pump housing and motor
- Pneumatic level switching with 10 m control cable
- Including. switching - warning device
- Ingress protection IP 54
- With 1.5 m connection cable and earthed safety plug
- With isolated group alarm and operation signal
- Tested in accordance with EN 12050-2 (non-faecal wastewater)
