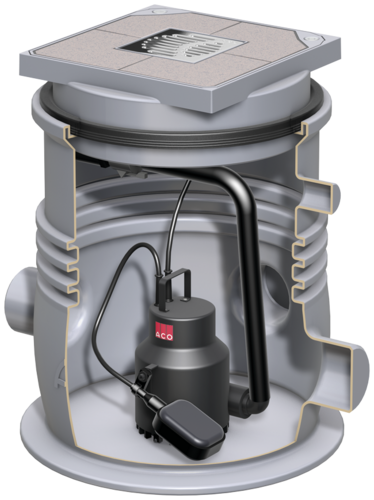

Sinkamat-K mono

Product benefits

Quick-release coupling for toolless installation/dismantling of the pump
Optional waterproof concrete waterproofing possible
Several connection options available
Top section optionally with frame size
- 198 x 198 mm or
- 360 x 300 mm (telescopically height-adjustable)
Optional cover for selectable surface and odour trap

Area of application
- For underfloor installation in frost free rooms below the flood level, e.g. in basement, hobby and laundry rooms
- For domestic non-faecal wastewater, e.g. from showers, washbasins, etc.
Housing made out of polyethylene
With 3 inlet sockets DN 100
With height-adjustable top sections
- With telescopic height-adjustability: 30 – 70 mm
Motor housing and shaft made of stainless steel
Pump housing and impeller plastic
Mechanical seal between pump housing and motor
With 10 m connection cable and earthed safety plug
With ball float switch
With integrated non-return flap R 1¼"
Pressure connection to EN ISO 15493
- PVC-U; 50‑40-R 1¼"
Tested in accordance with EN 12050-2 (non-faecal wastewater)
